Snort Room Walkthrough

Snort is an open-source intrusion detection and prevention system (IDS/IPS) that monitors network traffic in real-time, > analyzing packets for signs of malicious activity. It uses predefined rules to detect threats and can alert or block suspicious network activity.

Task 1

Read through task and complete the question.

Task 2

In Task 2 click ‘Start Machine’ and complete the question.

Task 3

While the VM is loading – read through Task 3 and complete the questions. All answers can be found throughout the reading in Task 3.

Task 4

Read through Task 4 and start exploring snort. Use the hints with the questions when needed.

Question 1:

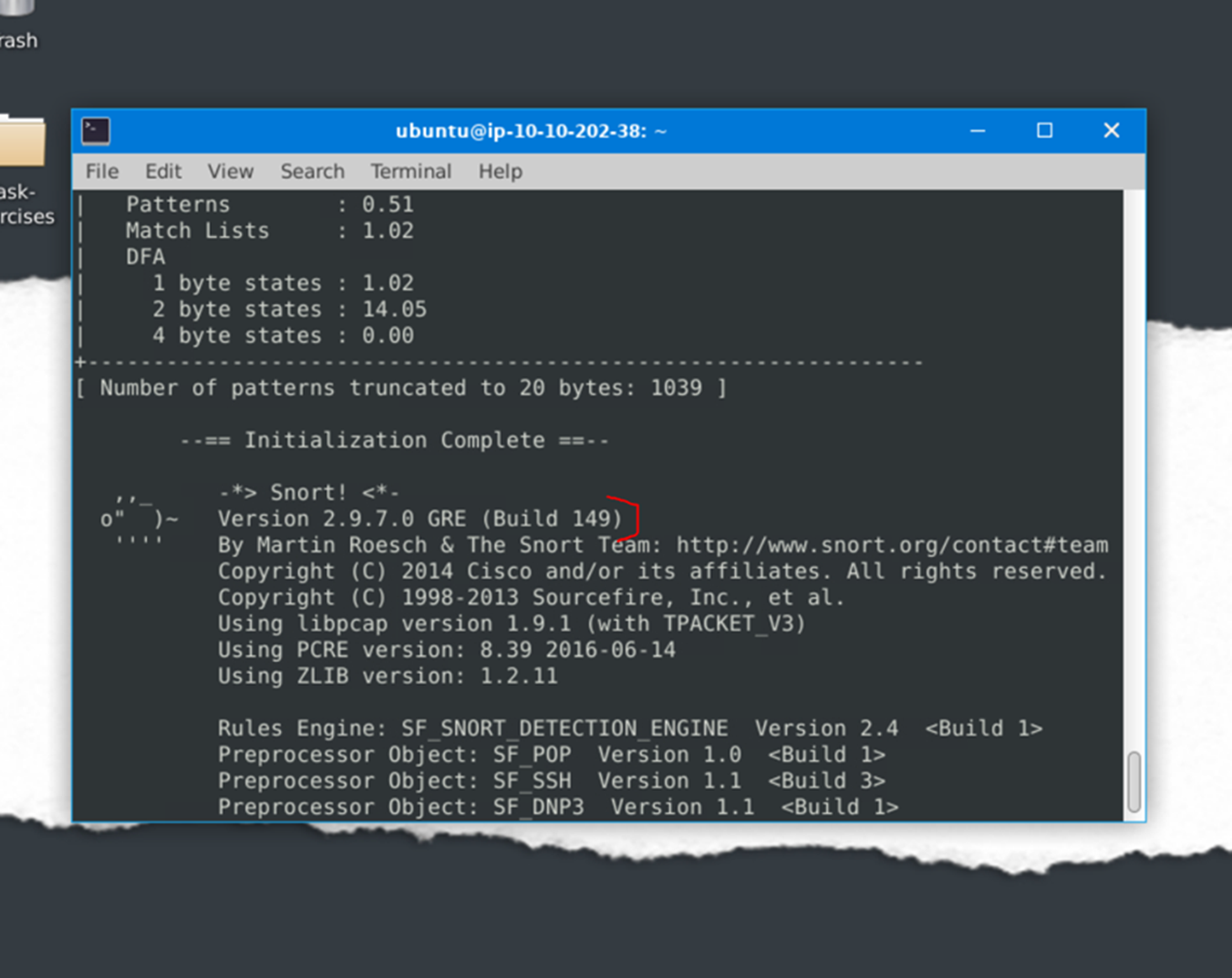

Run the Snort instance and check the build number.

The build number is 149.

Question 2:

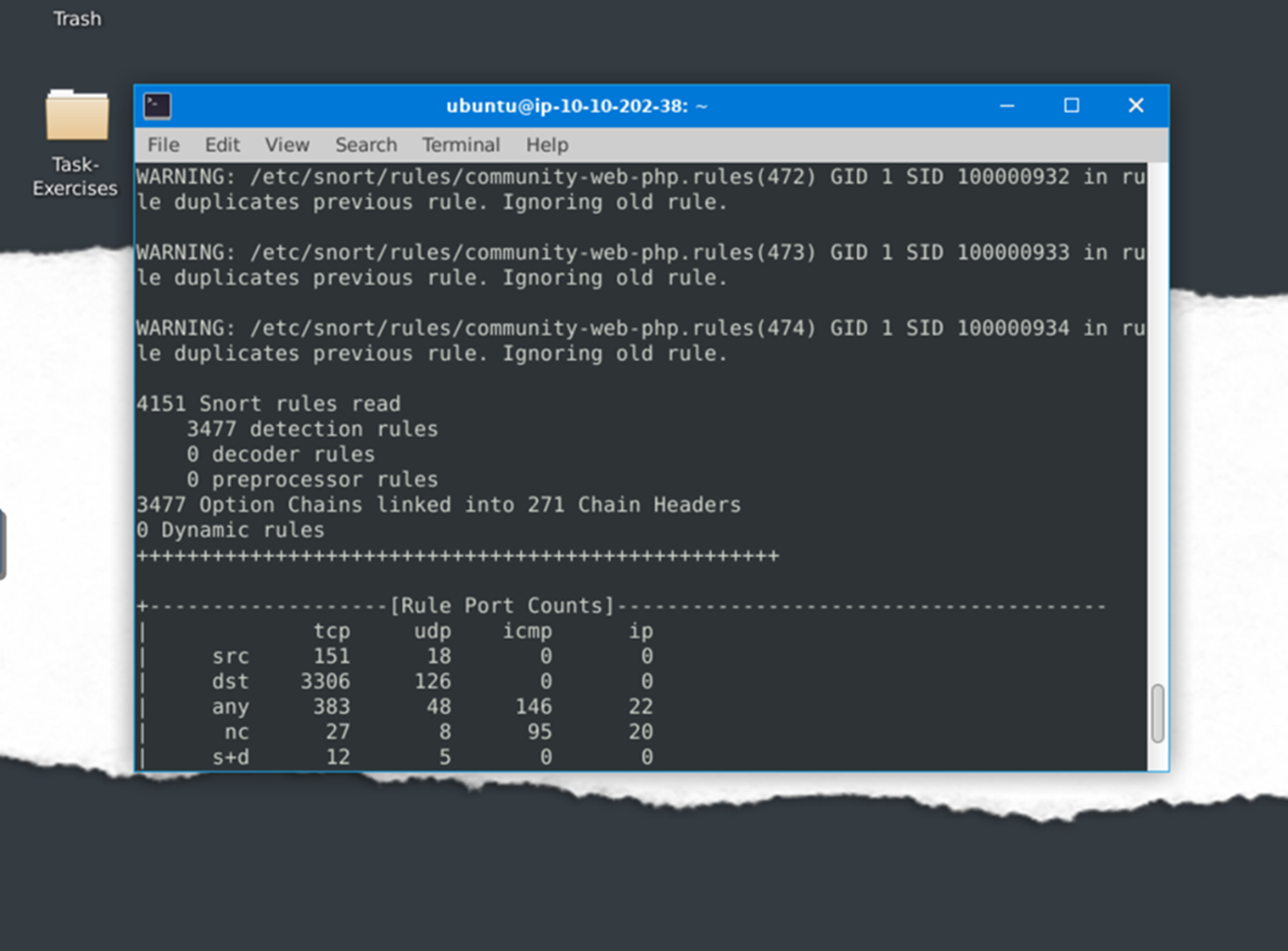

Test the current instance with “/etc/snort/snort.conf” file and check how many rules are loaded with the current build.

If we scroll up through the file we can see that there are 4151 rules loaded.

Question 3:

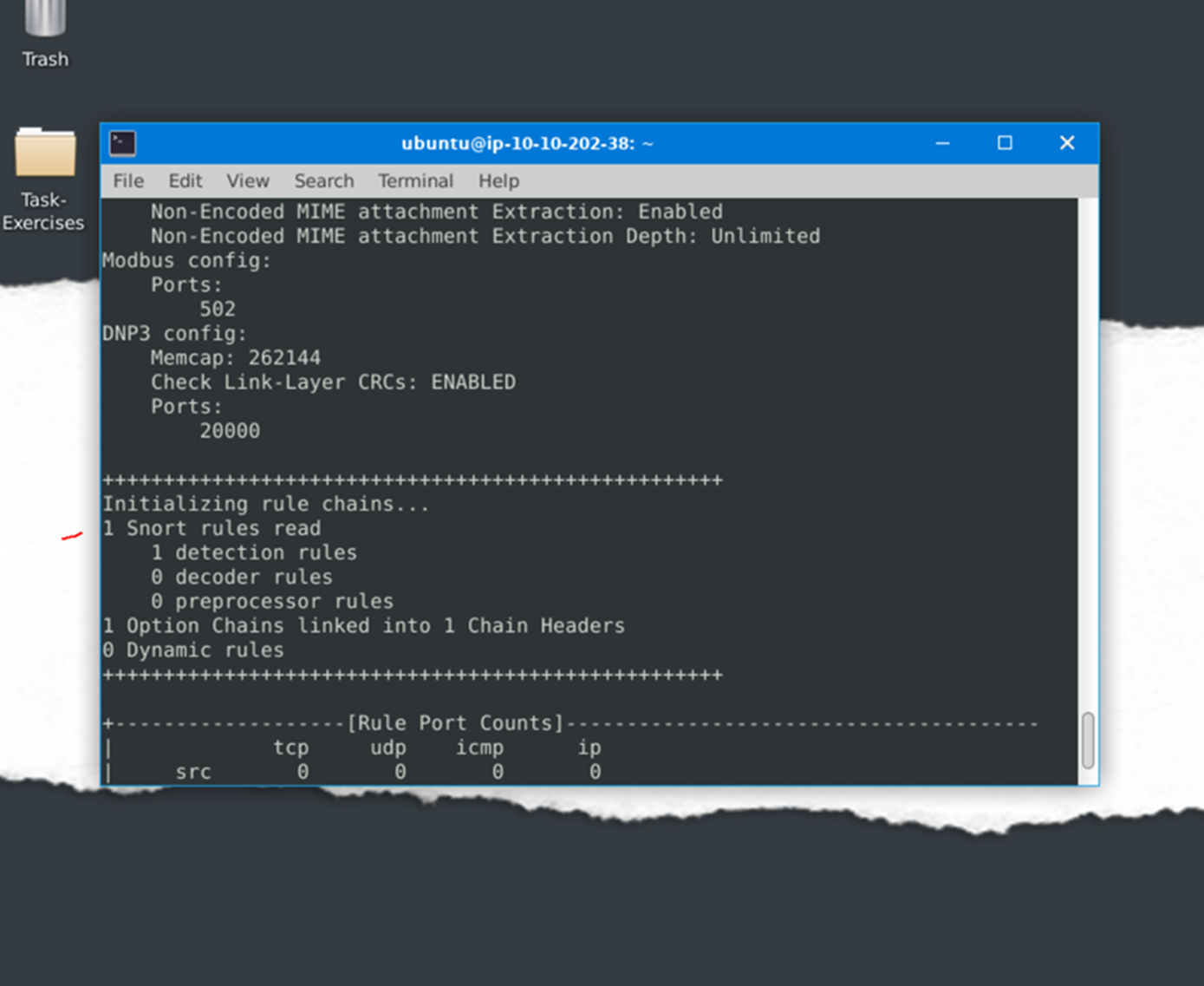

Test the current instance with “/etc/snort/snortv2.conf” file and check how many rules are loaded with the current build.

If we run with the snortv2 file we can see that 1 rule has loaded.

Task 5

Read through task 5 and practice using parameter combinations.

Task 6

Read through the documentation on Task 6. We will be using

 sudo snort -dev -K ASCII -l .

to investigate the traffic.

Execute the traffic generator script and choose “TASK-6 Exercise”. Wait until the traffic ends, then stop the Snort instance. Now analyse the output summary and answer the question. Remember to generate traffic we use

sudo ./traffic-generator.sh

Question 1:

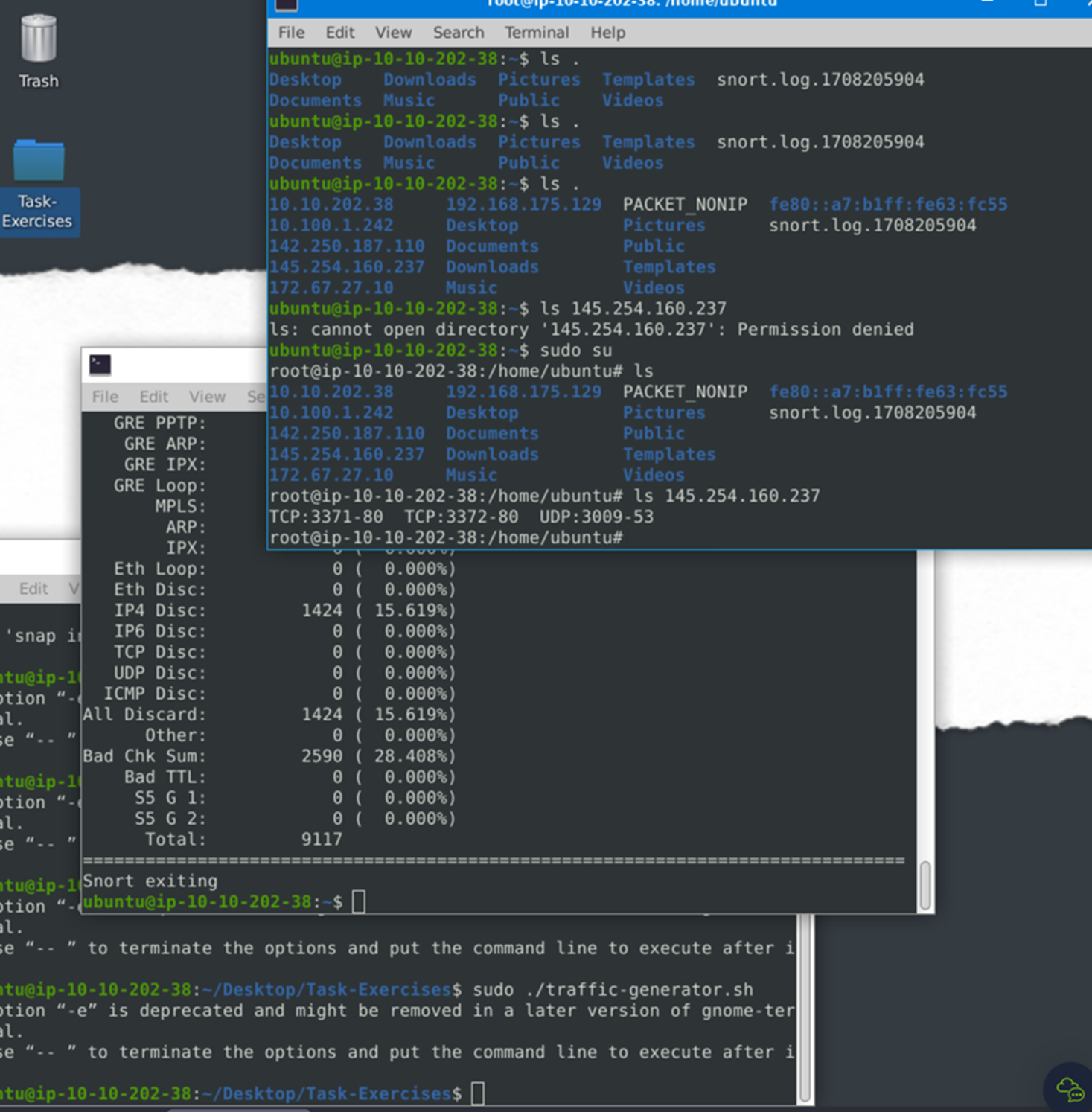

Now, you should have the logs in the current directory. Navigate to folder “145.254.160.237”. What is the source port used to connect port 53?

Here we can see the source port is 3009.

Question 2:

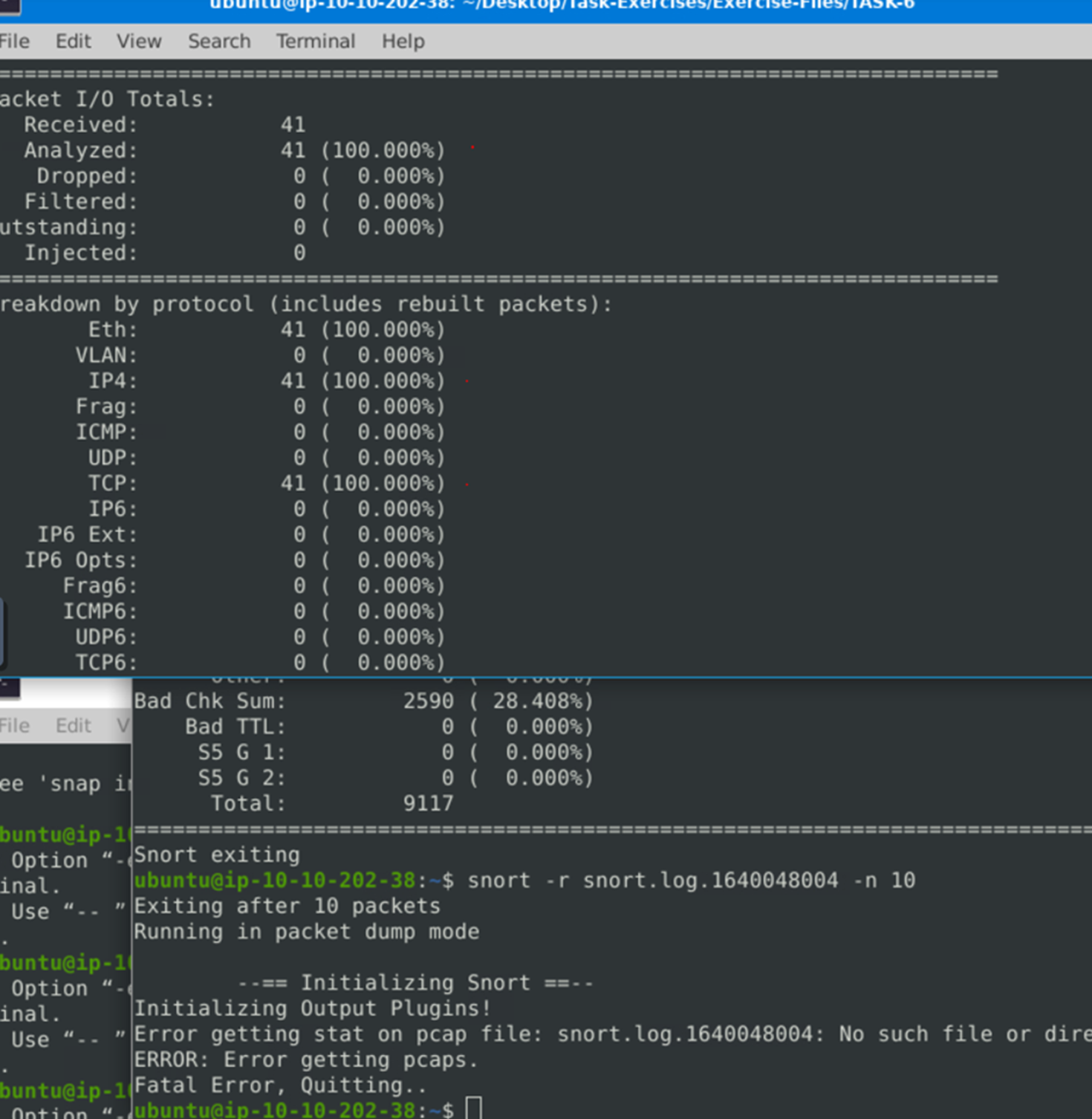

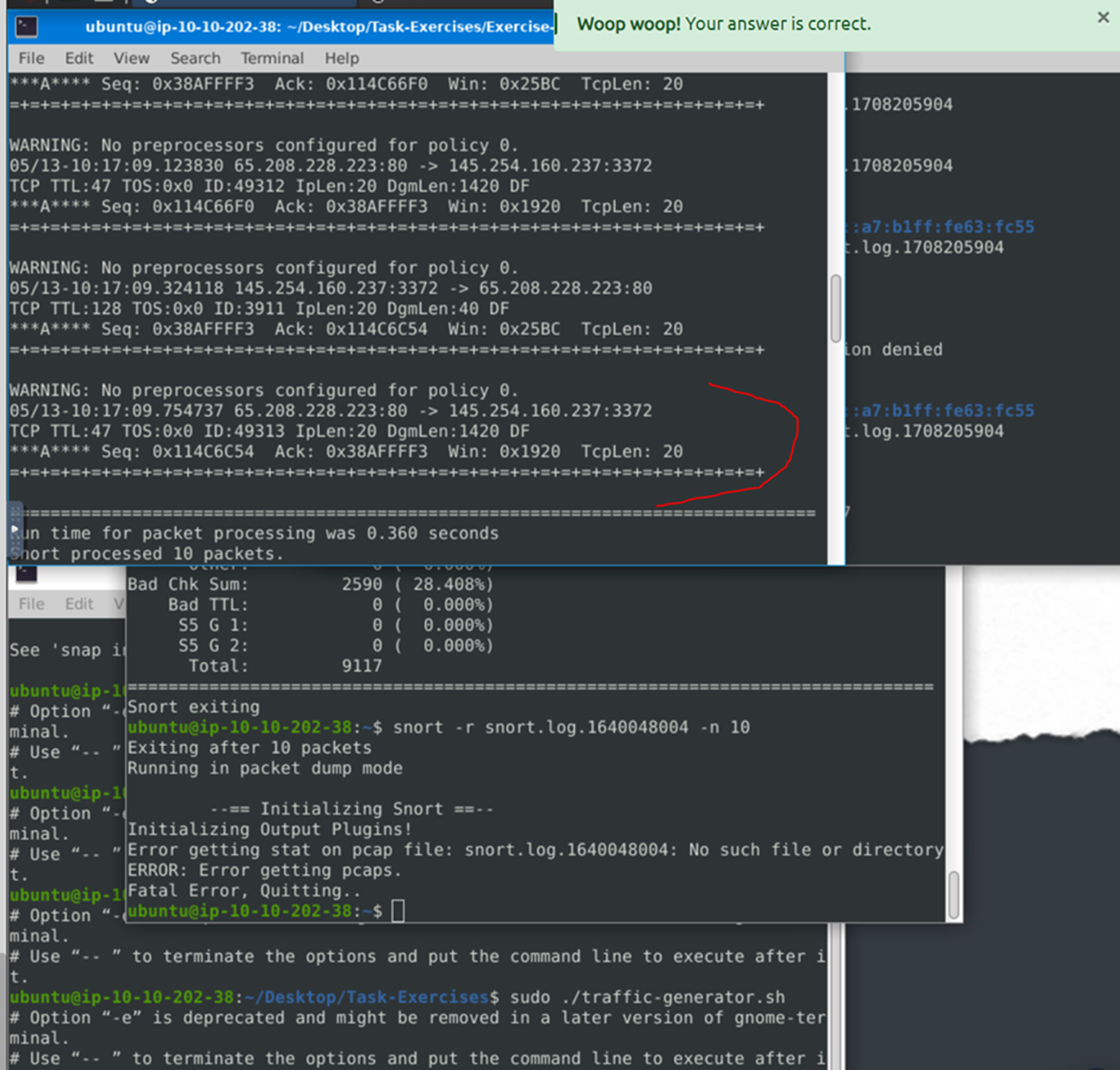

Use snort.log.1640048004 Read the snort.log file with Snort; what is the IP ID of the 10th packet?

Command to use for this question:

Snort -r snort.log.1640048004 -n 10

Also make sure you are in the correct directory.

The answer would be 49313.

Question 3:

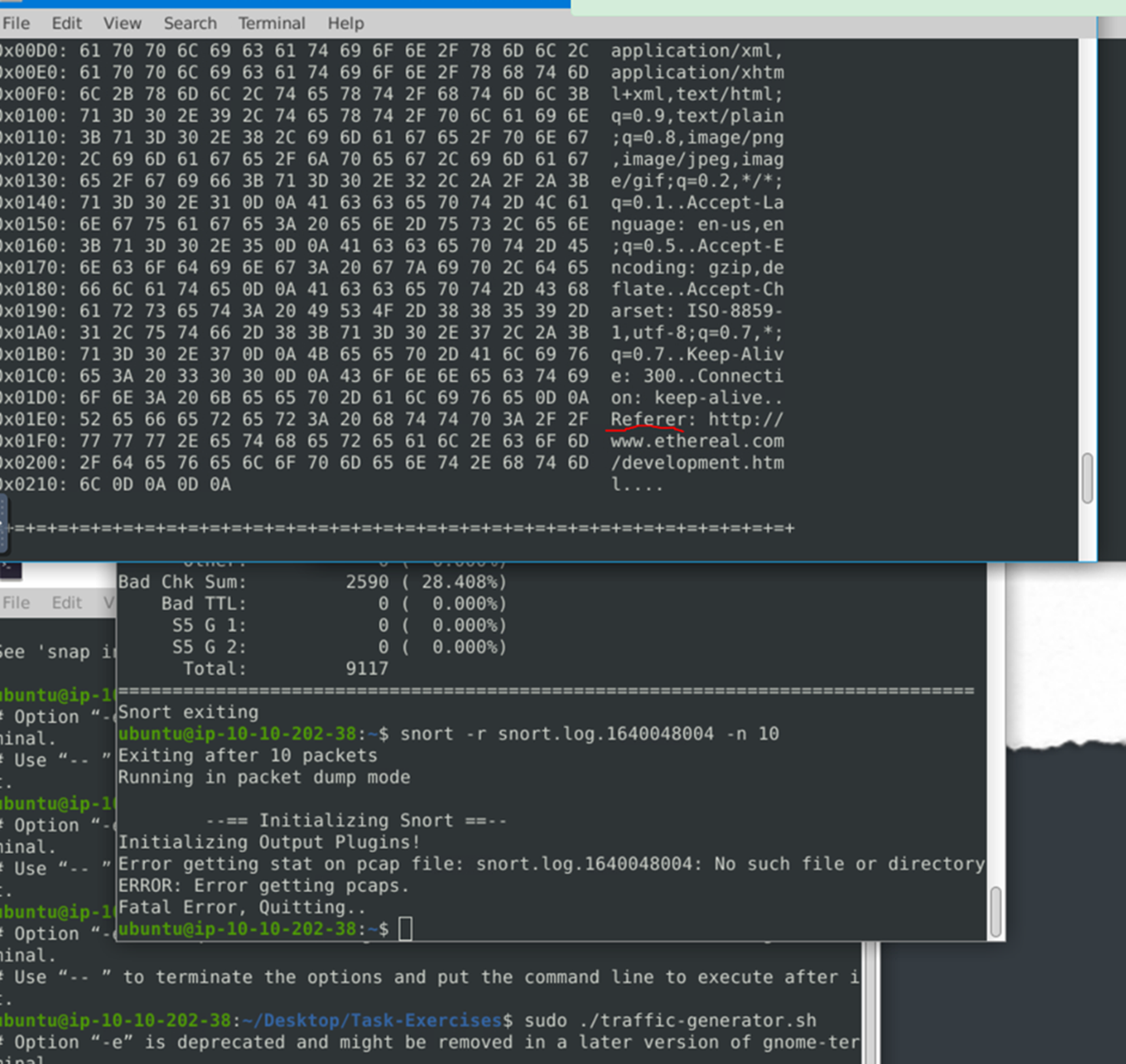

Read the “snort.log.1640048004” file with Snort; what is the referer of the 4th packet?

Look for the word ‘referer’ and we have our answer.

Question 4:

Read the “snort.log.1640048004” file with Snort; what is the Ack number of the 8th packet?

TCP port 80 number is 41.

Task 7

Read through task 7 and follow along with their examples to get the hang of some syntax. At the end we will investigate the traffic with the default config file with the following syntax.

sudo snort - /etc/snort/snort.conf -A full -l .

Execute the traffic generator script and choose “TASK-7 Exercise”. Wait until the traffic stops, then stop the Snort instance. Now analyse the output summary and answer the question. Use the traffic generator syntax

sudo ./traffic-generator.sh

Question 1:

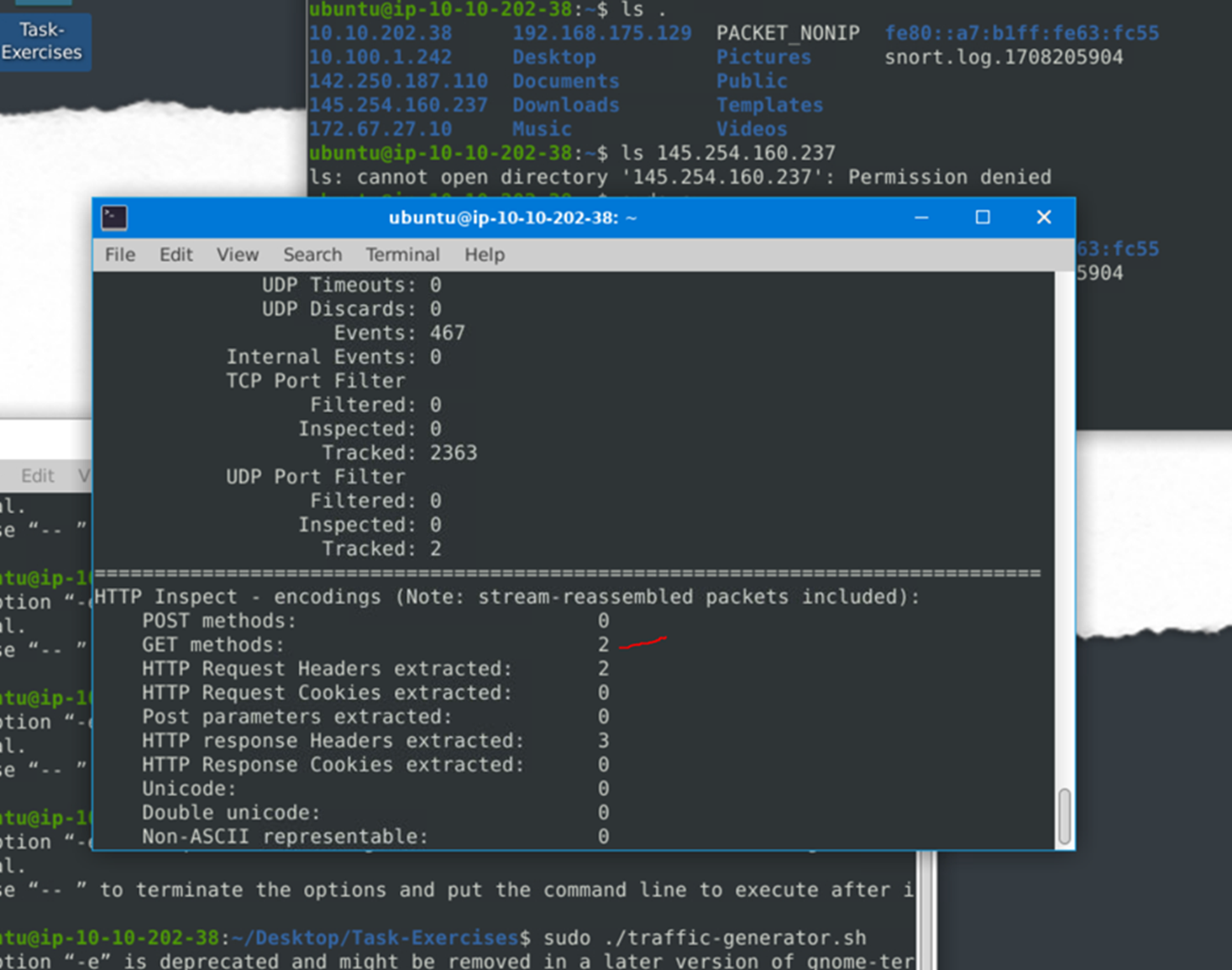

What is the number of the detected HTTP GET methods?

Use the hints when needed.

The question specifies ‘GET’ methods and here under HTTP we can see there are 2. Here we are encouraged to practice more parameters by using the traffic=generator script.

Task 8

Read and follow along with the documentation for task 8. For the questions make sure you are in the correct directory – for now we want to be in TASK-8 folder. Investigate the mx-1.pcap file with the default configuration file.

sudo snort -c /etc/snort/snort.conf -A full -l . -r mx-1.pcap

Question 1:

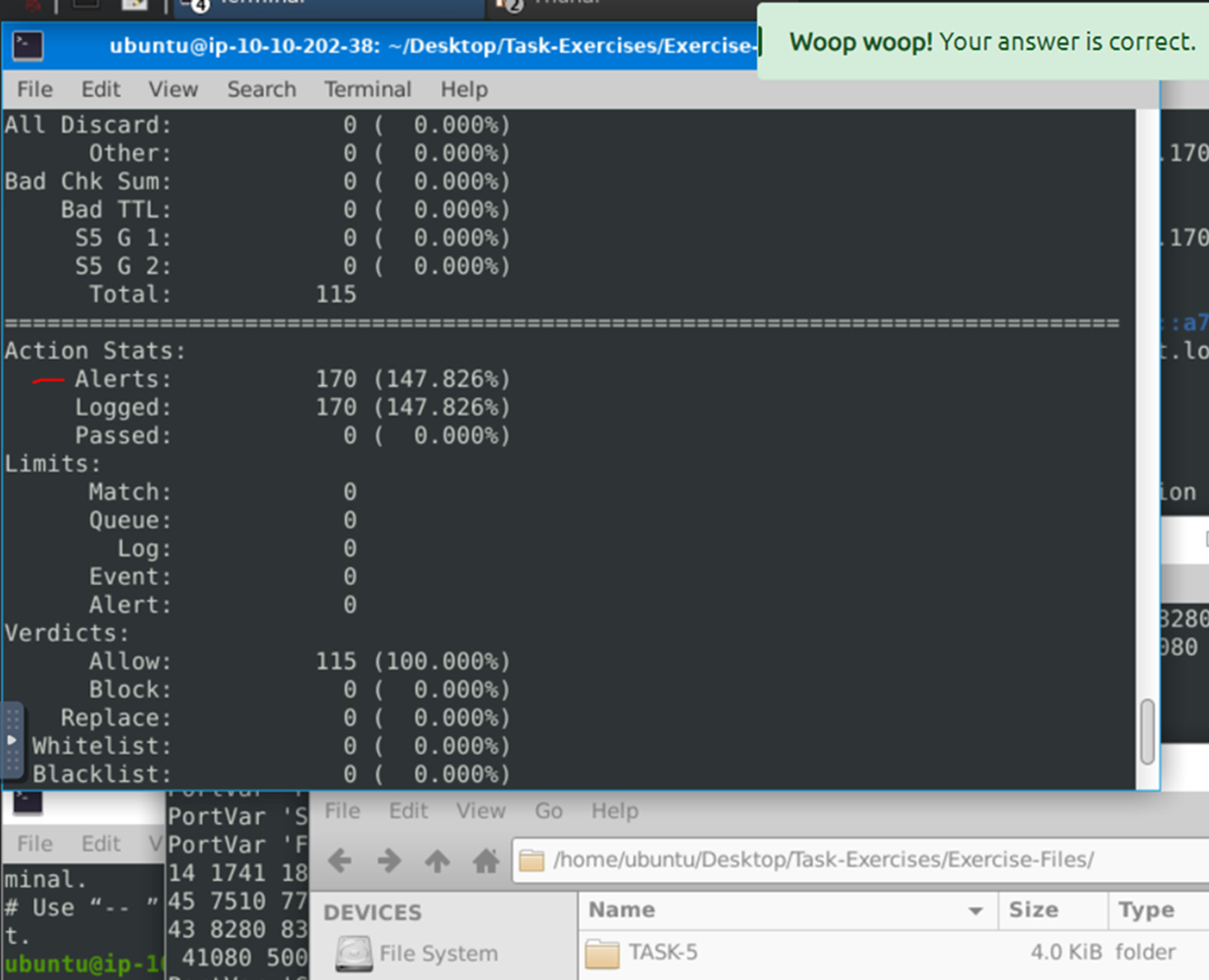

What is the number of the generated alerts?

Next to ‘alerts’ is says 170.

Question 2:

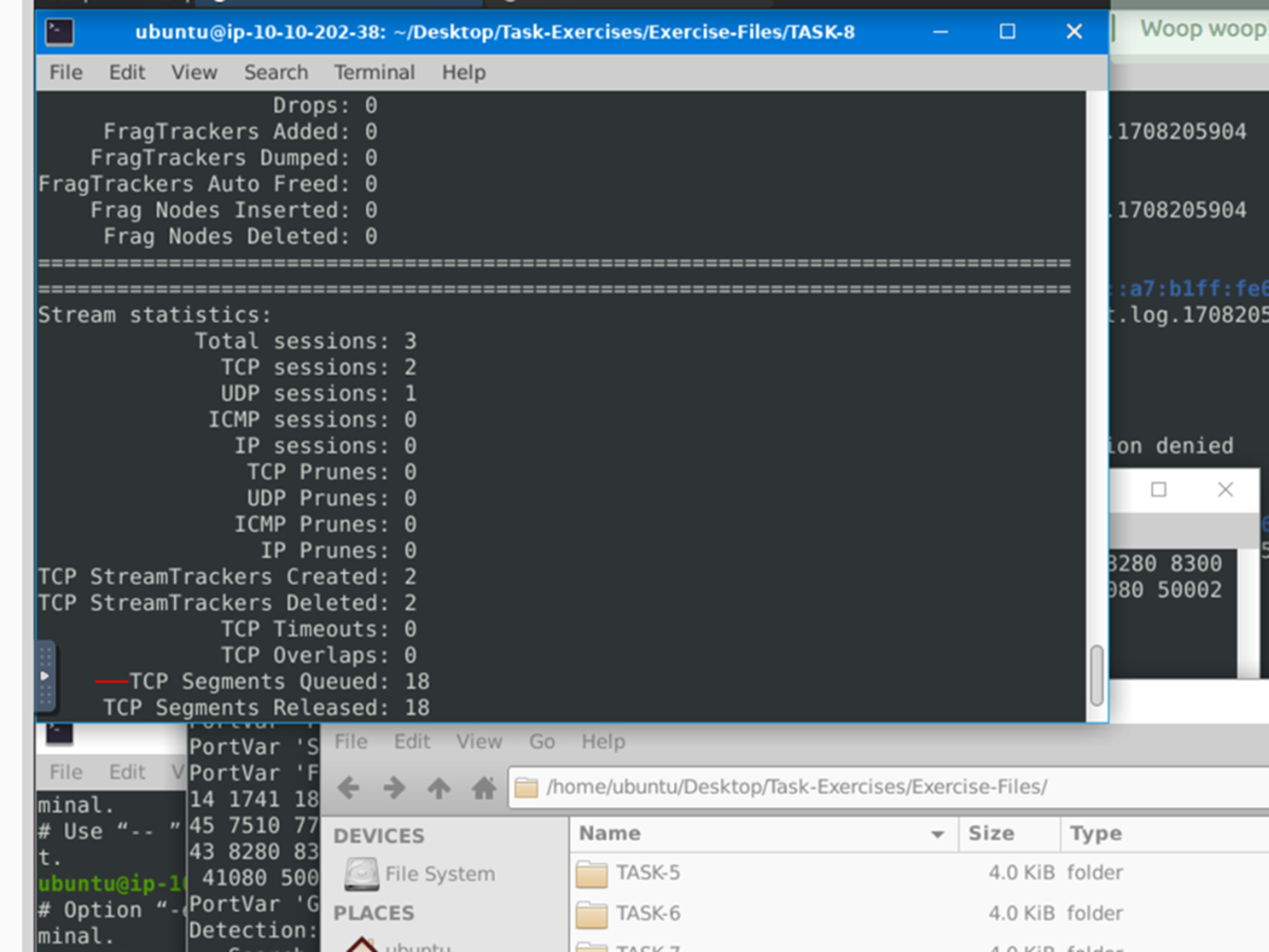

Keep reading the output. How many TCP Segments are Queued?

As we scroll through we can see that there are 18 TCP segments that are queued.

Question 3:

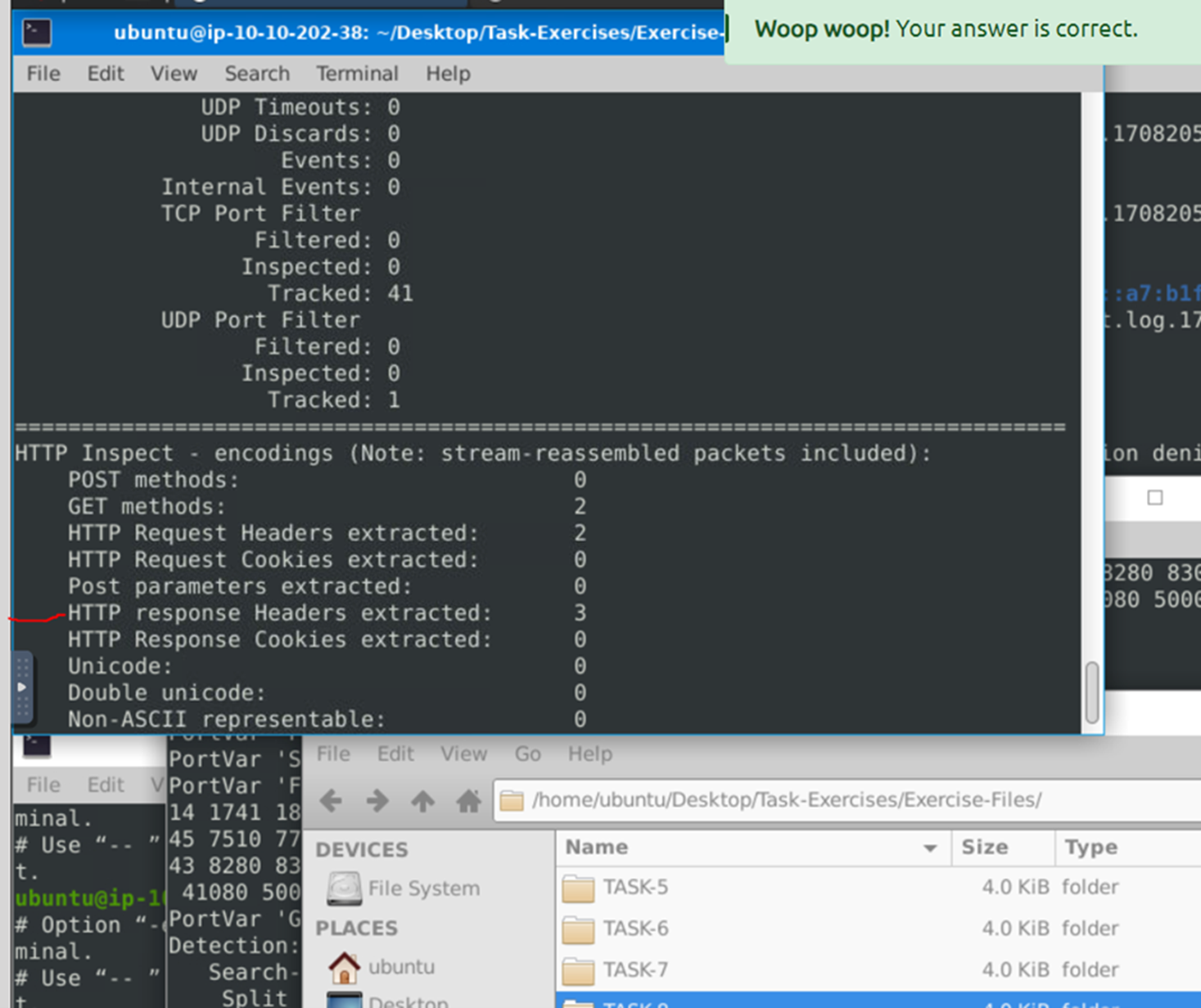

Keep reading the output. How many “HTTP response headers” were extracted?

We scroll a little more and find that there were 3 HTTP response headers extracted. For the next question Investigate the mx-1.pcap file with the second configuration file.

sudo snort -c /etc/snort/snort.conf -A full -l . -r mx-2.pcap

Question 4:

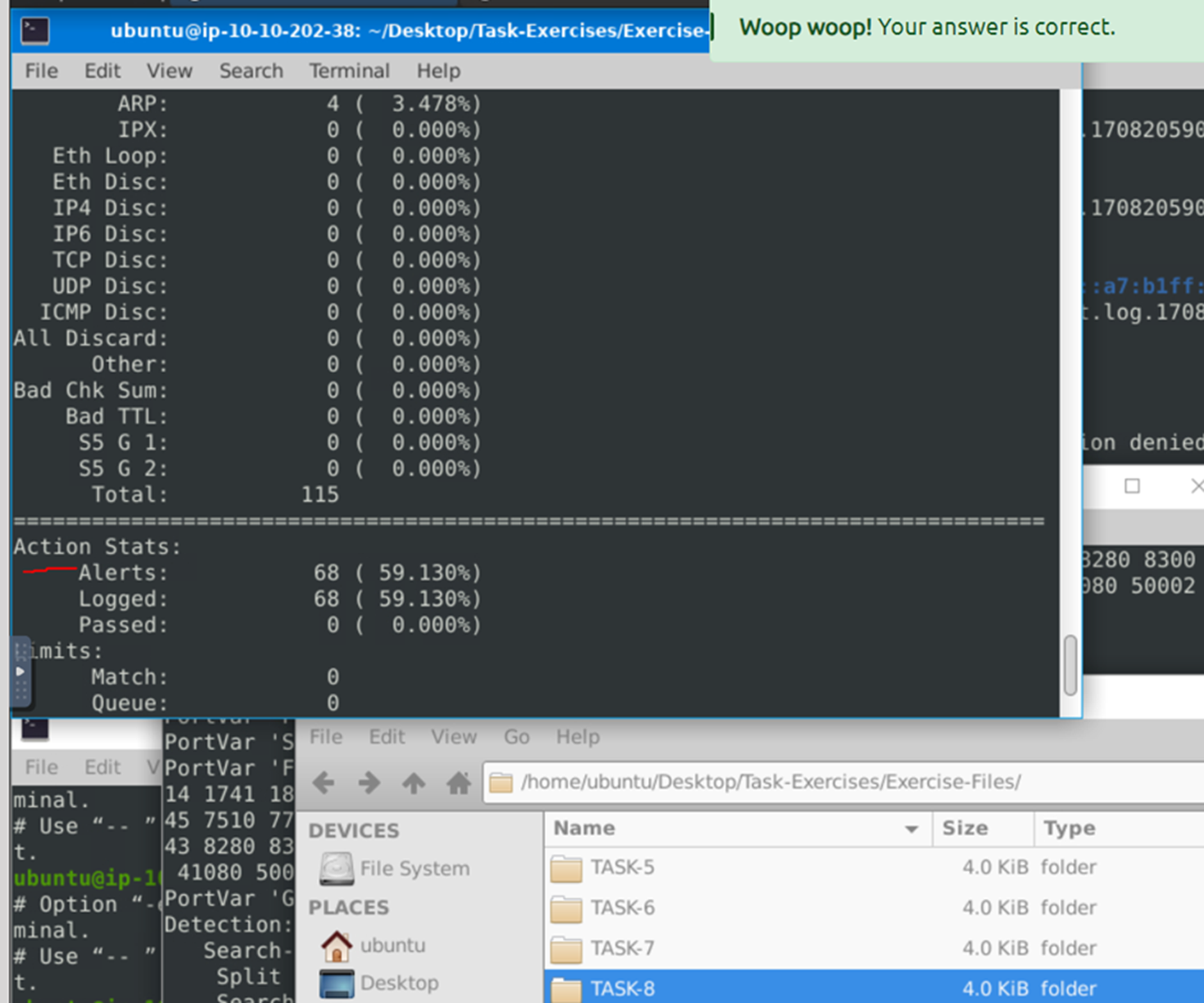

what is the number of the generated alerts?

68.

For the next two questions

Investigate the mx-2.pcap file with the default configuration file.

sudo snort -c /etc/snort/snort.conf -A full -l . -r mx-2.pcap

Question 5:

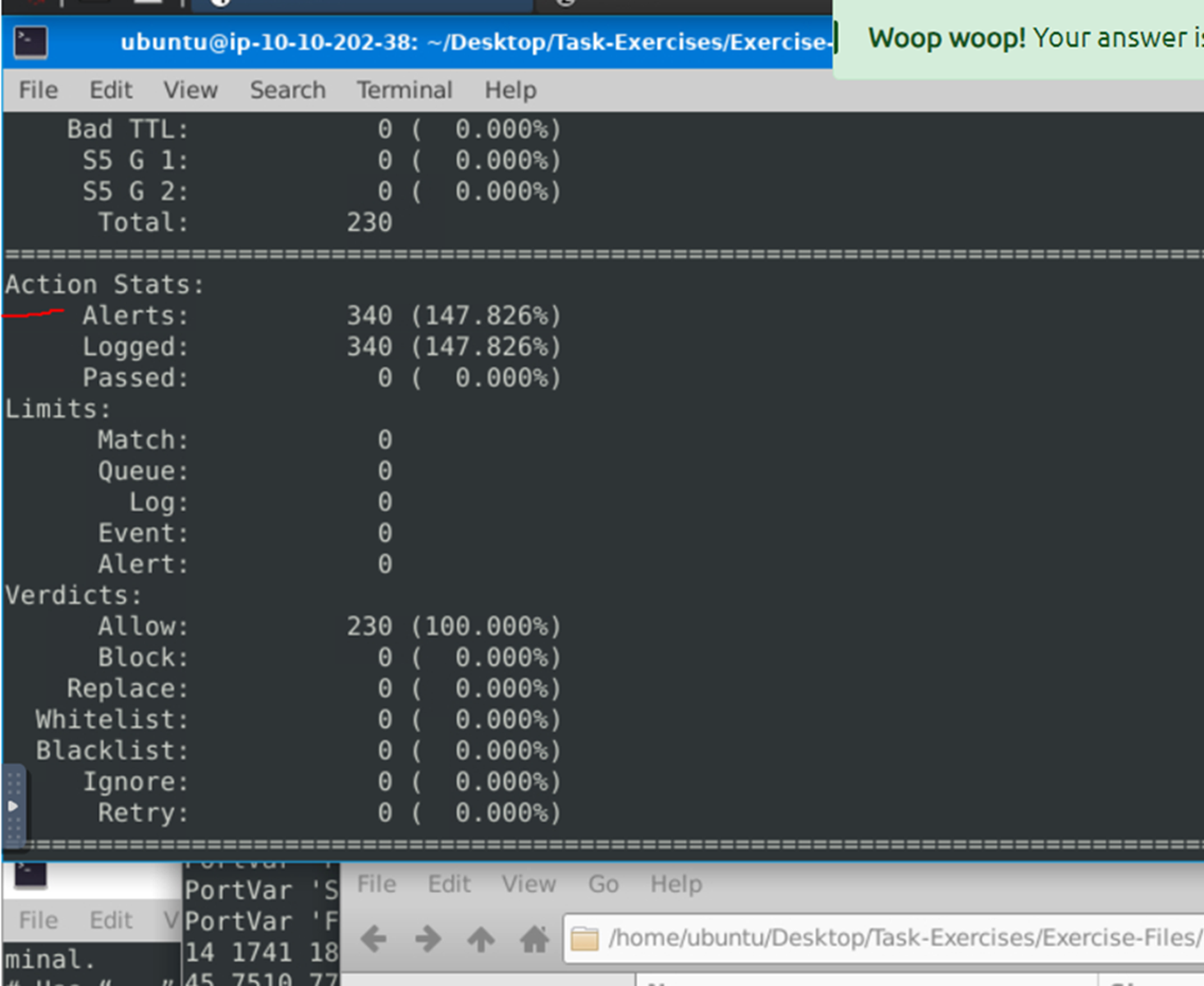

What is the number of the generated alerts?

Alerts for this one are at 340.

Question 6:

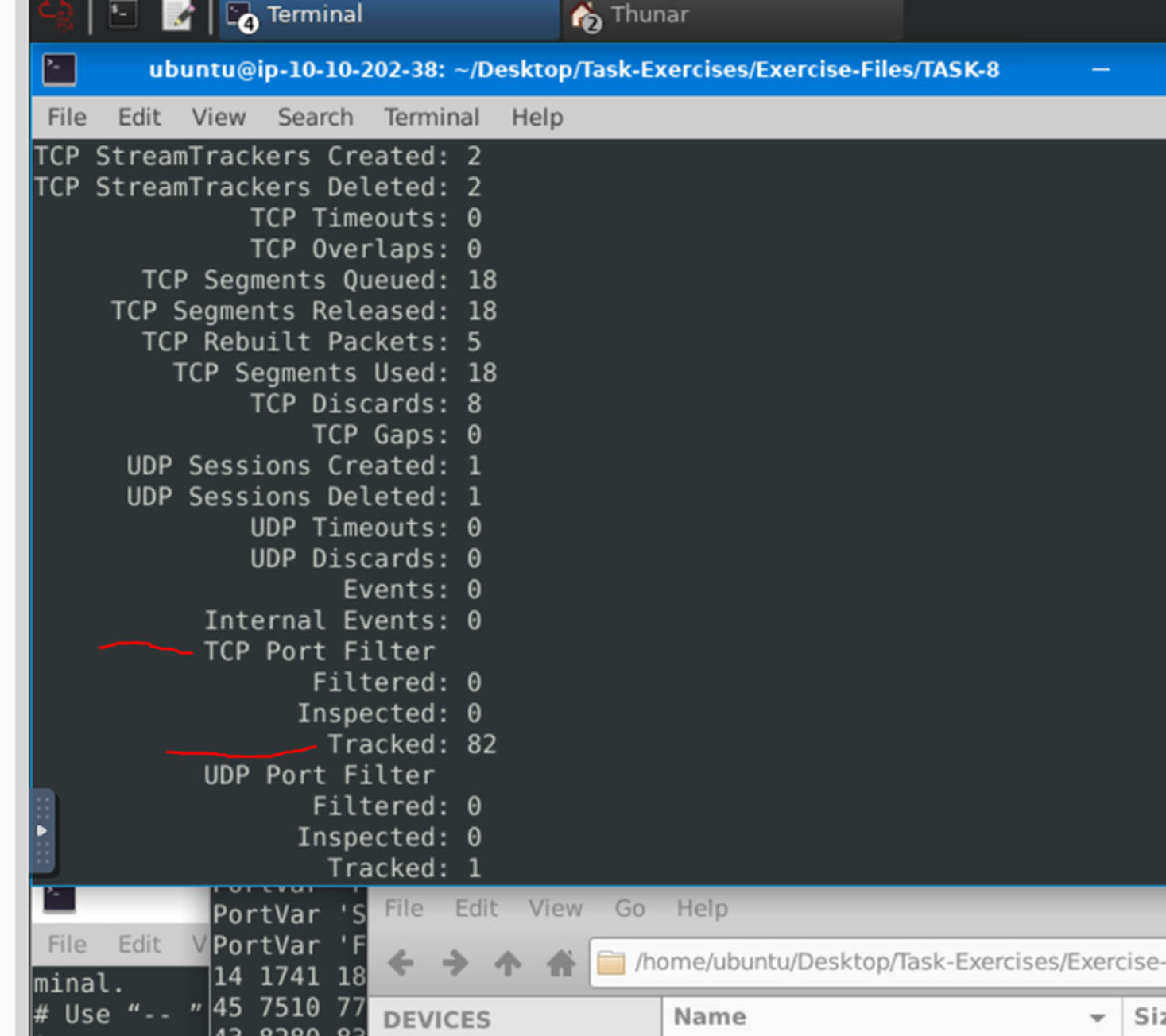

Keep reading the output. What is the number of the detected TCP packets? Use the hint for question 5: Check for the TCP Port Filter.

82.

For this question

Investigate the mx-2.pcap and mx-3.pcap files with the default configuration file.

sudo snort -c /etc/snort/snort.conf -A full -l . --pcap-list="mx-2.pcap mx-3.pcap"

Question 7:

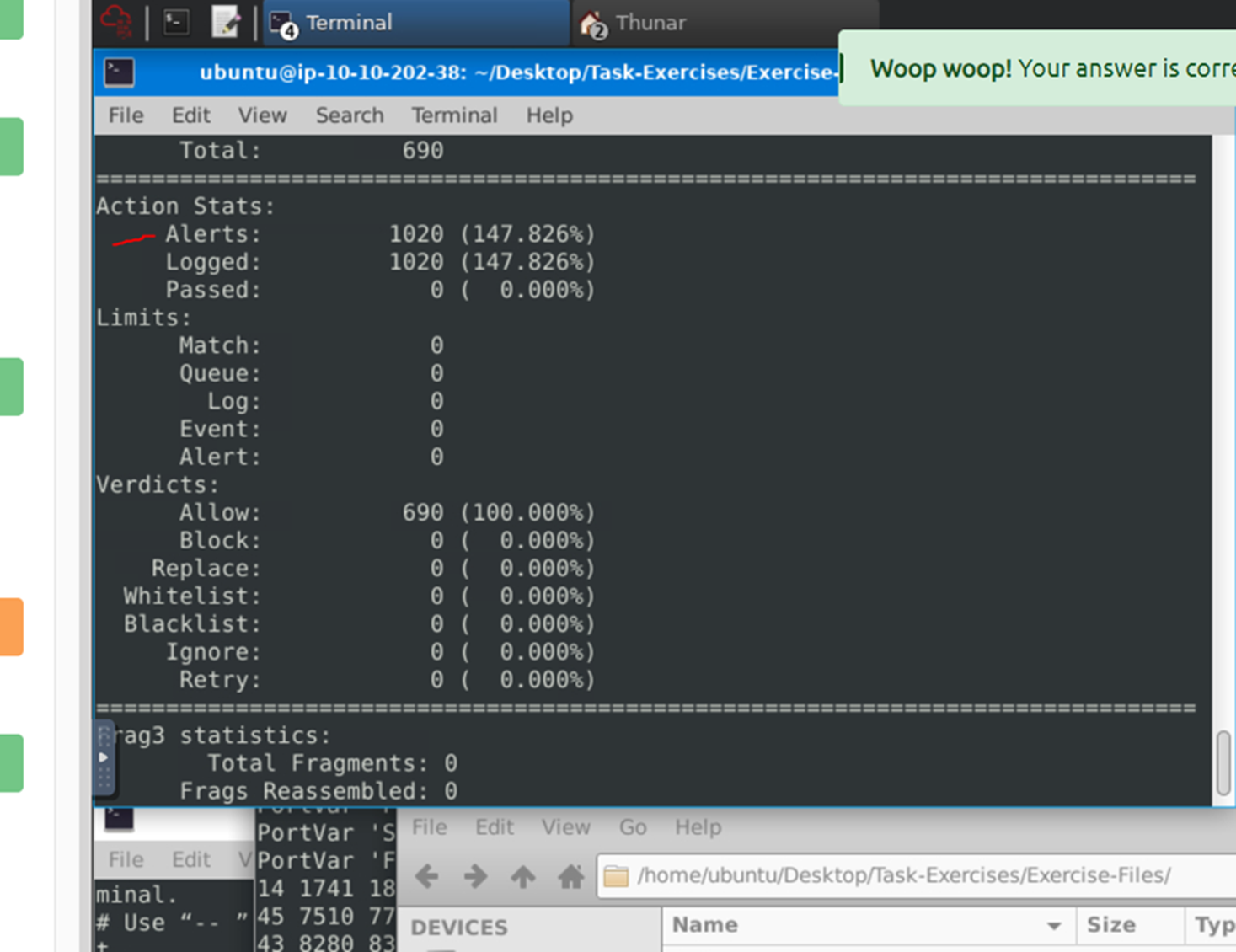

What is the number of the generated alerts?

1020.

Task 9

Read through task 9.

For these questions use “task9.pcap”.

Also make sure that you have the ‘local.rules’ file open to write down all the rules you are going to run. Found in the task 9 folder.

Question 1:

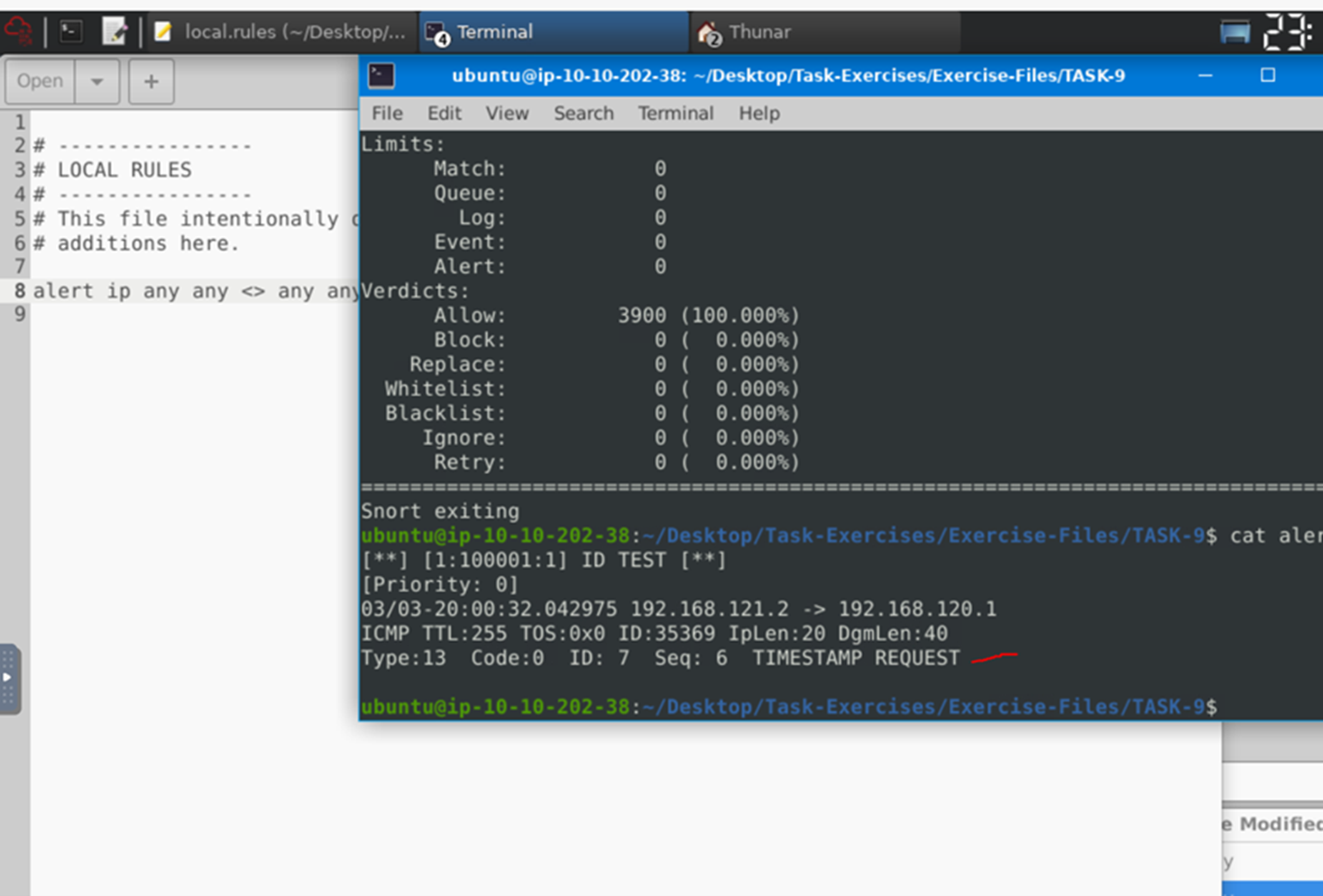

Write a rule to filter IP ID “35369” and run it against the given pcap file. What is the request name of the detected packet?

snort -c local.rules -A full -l . -r task9.pcap

I suggest using the hint: Try to filter different protocols like TCP/UDP/ICMP. id:35369;

TIMESTAMP REQUEST

Question 2:

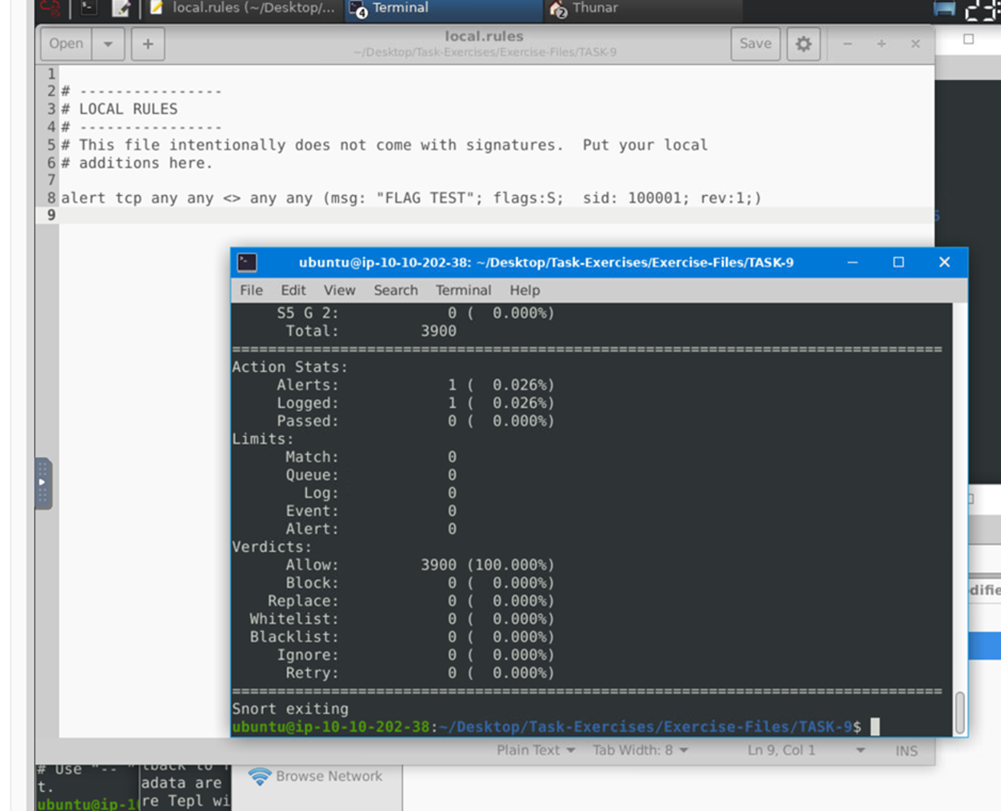

Create a rule to filter packets with Syn flag and run it against the given pcap file. What is the number of detected packets?

Detected packets are 1

Question 3:

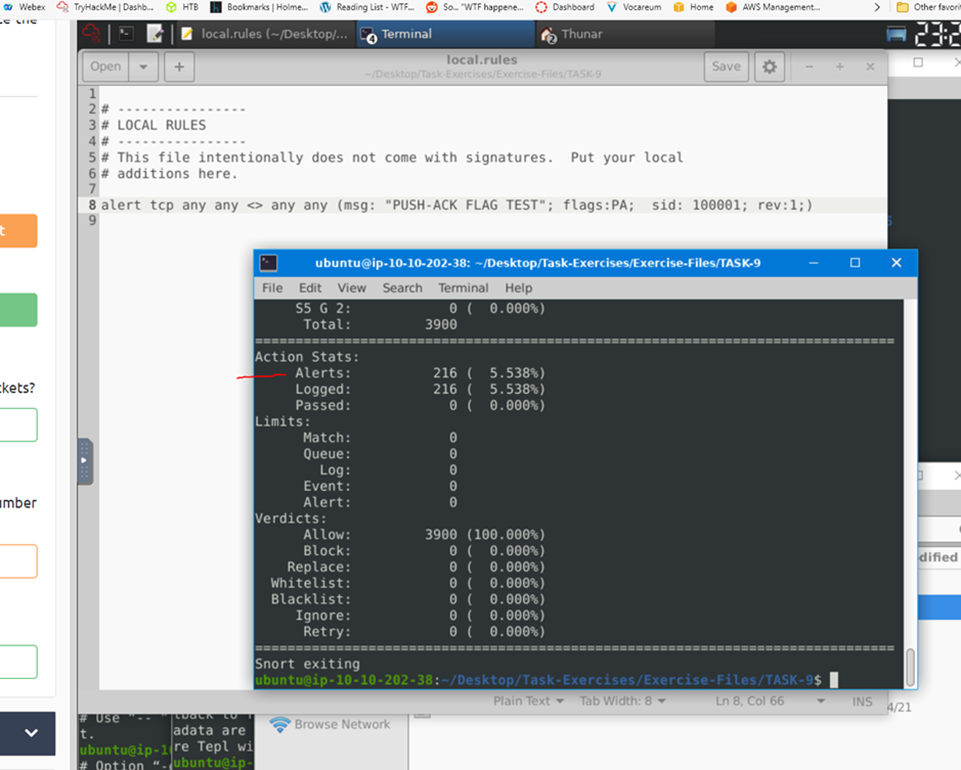

Clear the previous log and alarm files and deactivate/comment out the old rule. Write a rule to filter packets with Push-Ack flags and run it against the given pcap file. What is the number of detected packets?

216.

Question 4:

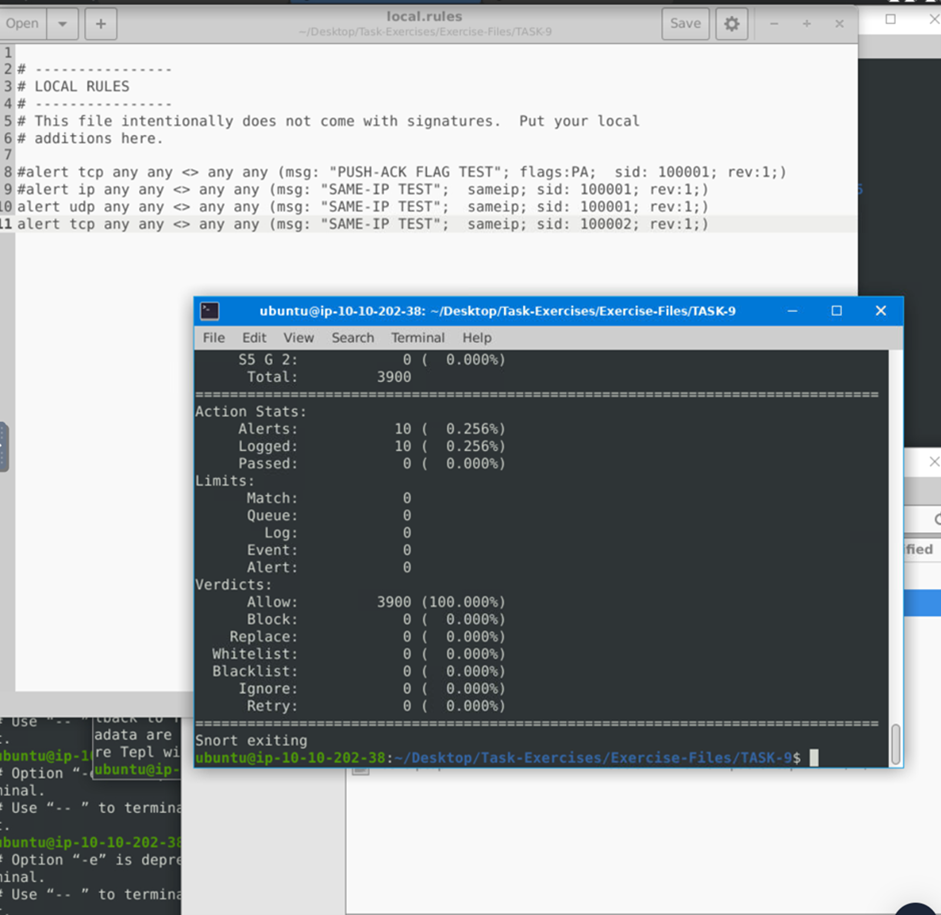

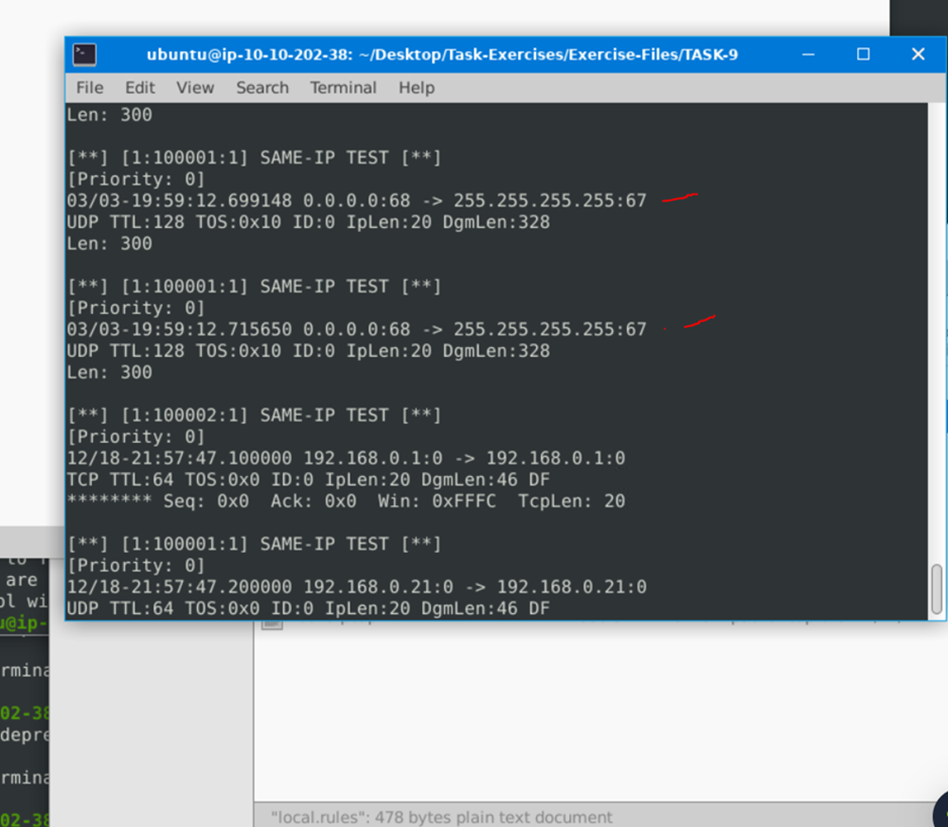

Clear the previous log and alarm files and deactivate/comment out the old rule. Create a rule to filter packets with the same source and destination IP and run it against the given pcap file. What is the number of packets that show the same source and destination address?

I initially got 10 – but if you cat on the alerts. You can see which ones have our rule.

I counted 7.

Question 5:

Case Example - An analyst modified an existing rule successfully. Which rule option must the analyst change after the implementation?

Revs must change.
