TB - GNS3 Lab: Private VLAN
by C. Casquatch
Lab from Renee Molenaar NOTE: I know there is a mismatch on interfaces between the fast ethernet and gigabit ethernet in my own topology.

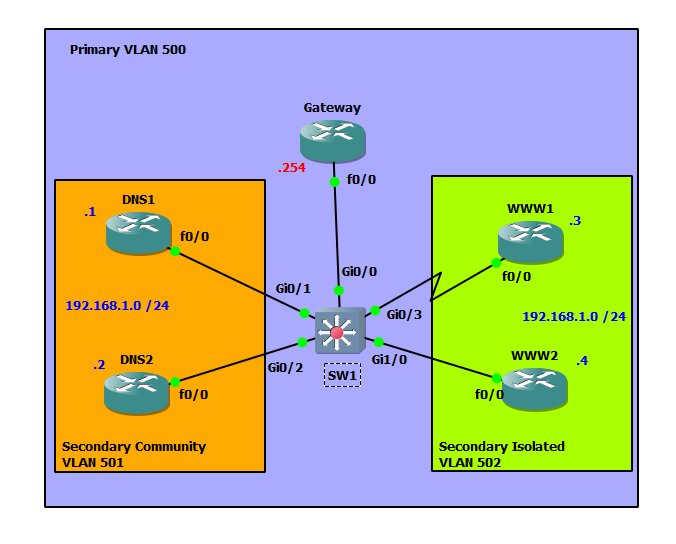

🧱 Topology Overview
Devices and Connections
| Device | Interface | SW1 Interface |
|---|---|---|
| Gateway | fa0/0 | Gi0/0 |
| DNS1 | fa0/0 | Gi0/1 |
| DNS2 | fa0/0 | Gi0/2 |
| WWW1 | fa0/0 | Gi0/3 |
| WWW2 | fa0/0 | Gi1/0 |
VLANs
| VLAN ID | Type | Name | Devices |
|---|---|---|---|
| 500 | Primary | PRIMARY_PVLAN | All devices |
| 501 | Community | COMMUNITY_501 | DNS1, DNS2 |
| 502 | Isolated | ISOLATED_502 | WWW1, WWW2 |
⚙️ Switch Configuration (SW1 - IOSvL2)
1. Set VTP to Transparent Mode (required)
SW1(config)# vtp mode transparent
2. Configure VLANs
SW1(config)# vlan 500
SW1(config-vlan)# private-vlan primary
SW1(config-vlan)# private-vlan association 501,502
SW1(config)# vlan 501
SW1(config-vlan)# private-vlan community
SW1(config)# vlan 502
SW1(config-vlan)# private-vlan isolated
3. Configure Promiscuous Port (Gateway)
SW1(config)# interface gi0/0
SW1(config-if)# switchport mode private-vlan promiscuous
SW1(config-if)# switchport private-vlan mapping 500 501,502
SW1(config-if)# switchport access vlan 500
SW1(config-if)# no shutdown
4. Configure Community Ports (DNS1, DNS2)
SW1(config)# interface gi0/1
SW1(config-if)# switchport mode private-vlan host
SW1(config-if)# switchport private-vlan host-association 500 501
SW1(config-if)# switchport access vlan 500
SW1(config-if)# no shutdown
SW1(config)# interface gi0/2
SW1(config-if)# switchport mode private-vlan host
SW1(config-if)# switchport private-vlan host-association 500 501
SW1(config-if)# switchport access vlan 500
SW1(config-if)# no shutdown
5. Configure Isolated Port (WWW1, WWWW2)
SW1(config)# interface gi0/3
SW1(config-if)# switchport mode private-vlan host
SW1(config-if)# switchport private-vlan host-association 500 502
SW1(config-if)# switchport access vlan 500
SW1(config-if)# no shutdown
SW1(config)# interface gi1/0
SW1(config-if)# switchport mode private-vlan host
SW1(config-if)# switchport private-vlan host-association 500 502
SW1(config-if)# switchport access vlan 500
SW1(config-if)# no shutdown
Confirm VLAN configs

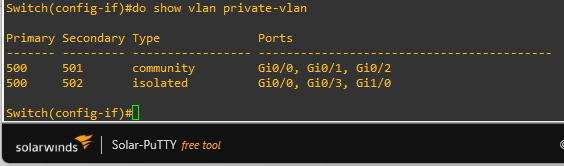

Showing all Vlans

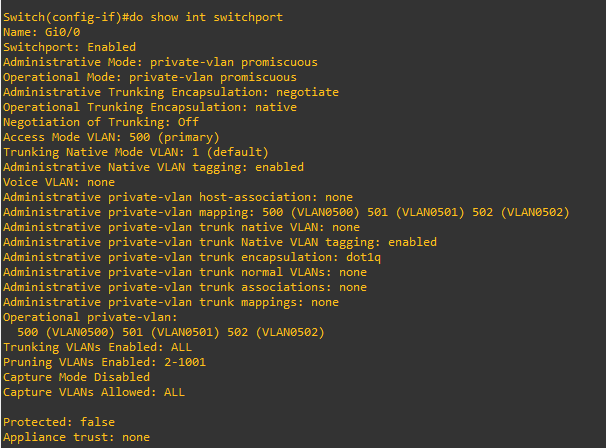

VLAN gi0/0 configuration

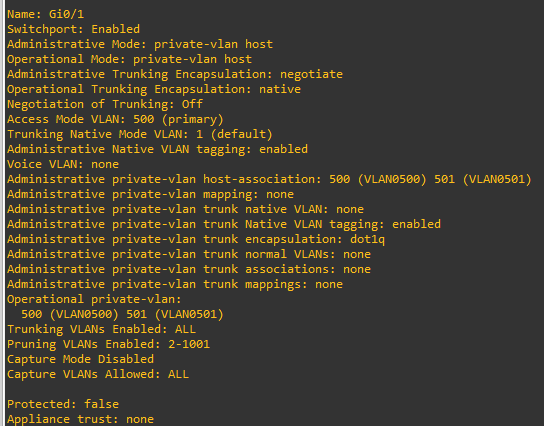

VLAN gi0/1 configuration

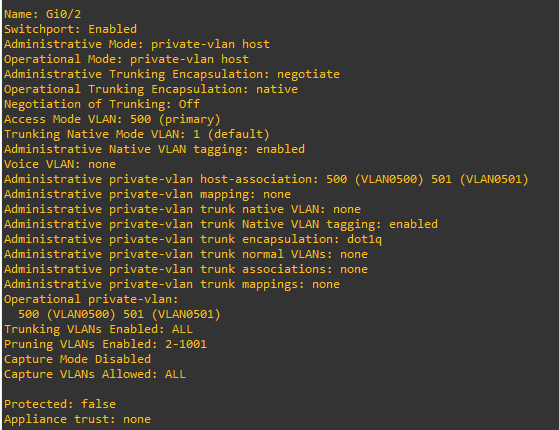

VLAN gi0/2 configuration

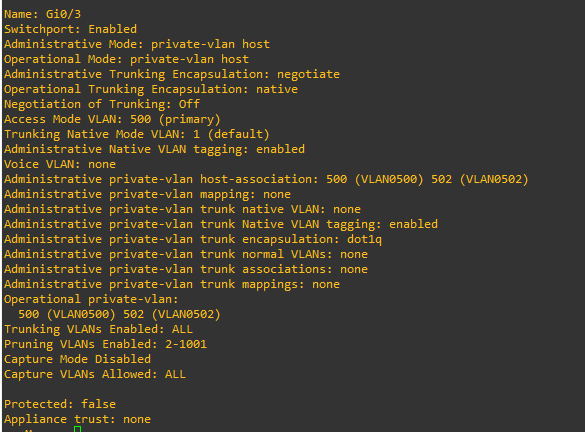

VLAN gi0/3 configuration

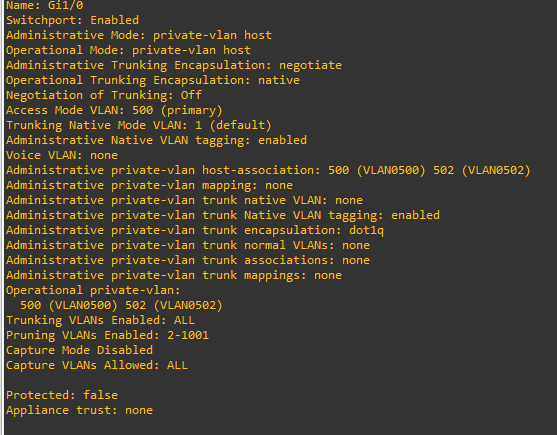

VLAN gi1/0 configuration
🌐 Router Configuration (C3640)
⚠️ Before assigning IPs, convert router interfaces to Layer 3 by disabling switchport.
Gateway
Gateway(config)# interface fa0/0
Gateway(config-if)# no switchport
Gateway(config-if)# ip address 192.168.1.254 255.255.255.0
Gateway(config-if)# no shutdown
DNS1
DNS1(config)# interface fa0/0
DNS1(config-if)# no switchport
DNS1(config-if)# ip address 192.168.1.1 255.255.255.0
DNS1(config-if)# no shutdown
DNS2
DNS2(config)# interface fa0/0
DNS2(config-if)# no switchport
DNS2(config-if)# ip address 192.168.1.2 255.255.255.0
DNS2(config-if)# no shutdown
WWW1
WWW1(config)# interface fa0/0
WWW1(config-if)# no switchport
WWW1(config-if)# ip address 192.168.1.3 255.255.255.0
WWW1(config-if)# no shutdown
WWW2
WWW2(config)# interface fa0/0
WWW2(config-if)# no switchport
WWW2(config-if)# ip address 192.168.1.4 255.255.255.0
WWW2(config-if)# no shutdown
🧪 Testing Expectations
| Test | Expected Result |
|---|---|
| DNS1 <-> DNS2 | ✅ Success |
| All devices <-> Gateway | ✅ Success |
| WWW1 <-> WWW2 | ❌ Fail |
| WWW <-> DNS | ❌ Fail |
Use ping from each router to validate.

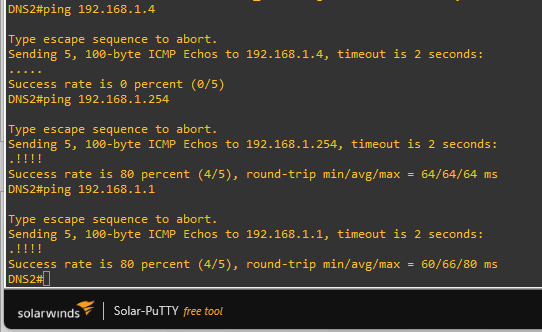

Pinging from DNS2 to confirm success or fail

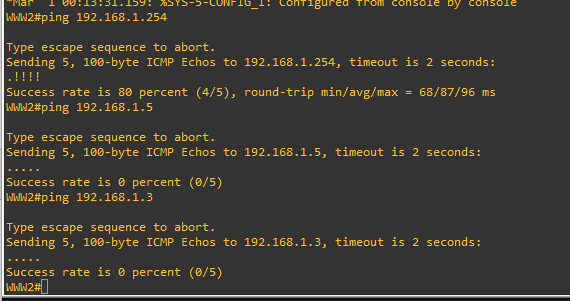

Pinging from WWW2 to confirm success or fail
🔍 Useful Verification Commands
show vlan private-vlan
show interfaces switchport
show interfaces gi0/1 switchport
show interfaces gi0/3 switchport
⚠️ Troubleshooting Notes
❗ Error: Private VLANs require VTP Transparent Mode
Error Message: %Private VLANs can only be configured when VTP is in transparent/off modes…
Fix: Run vtp mode transparent on the switch.
❗ Error: Can’t Assign IP to L2 Interface
Error Message: % IP addresses may not be configured on L2 links.
Fix: Use no switchport before assigning IP on router interfaces.
tags: GNS3 - PRIVATE-VLAN - Networking - vlan
